How To Control An LED Using Keypad?

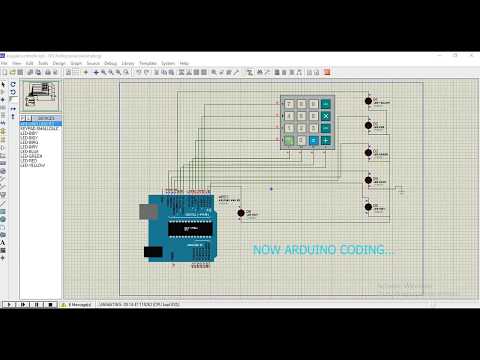

Arduino coding:

#include <Keypad.h>

const byte ROWS = 4; //four rows

const byte COLS = 4; //four columns

char keys[ROWS][COLS] = {

  {'7','8','9','/'},

  {'4','5','6','*'},

  {'1','2','3','-'},

  {'c','0','=','+'}

};

byte rowPins[ROWS] = {2, 3, 4, 5}; //connect to the row pinouts of the keypad

byte colPins[COLS] = {6, 7, 8, 9}; //connect to the column pinouts of the keypad

Keypad keypad = Keypad( makeKeymap(keys), rowPins, colPins, ROWS, COLS );

void setup(){

   pinMode(10,OUTPUT);

   pinMode(11,OUTPUT);

   pinMode(12,OUTPUT);

   pinMode(13,OUTPUT);

   pinMode(0,OUTPUT);

   pinMode(1,OUTPUT);



   Serial.begin(9600);

}

void loop()

{

  char key = keypad.getKey();

  if (key)

  {

     if (key=='1')

     {

      digitalWrite(10,HIGH);

      delay(500);

      digitalWrite(10,LOW);

      delay(500);

     }

     else if(key=='2')

     {

      digitalWrite(11,HIGH);

      delay(500);

      digitalWrite(11,LOW);

      delay(500);

     }

     else if(key=='3')

     {

      digitalWrite(12,HIGH);

      delay(500);

      digitalWrite(12,LOW);

      delay(500);

     }

      else if(key=='4')

     {

      digitalWrite(13,HIGH);

      delay(500);

      digitalWrite(13,LOW);

      delay(500);

     }

      else if(key=='5')

     {

      digitalWrite(0,HIGH);

      delay(500);

      digitalWrite(0,LOW);

      delay(500);

     }

     else

     {

      digitalWrite(1,HIGH);

      delay(500);

      digitalWrite(1,LOW);

      delay(500);

     }

  }

}

Embedded systems basics:
Embedded systems step by step video guide
-using PROTEUS ISIS professional and Arduino IDE software
